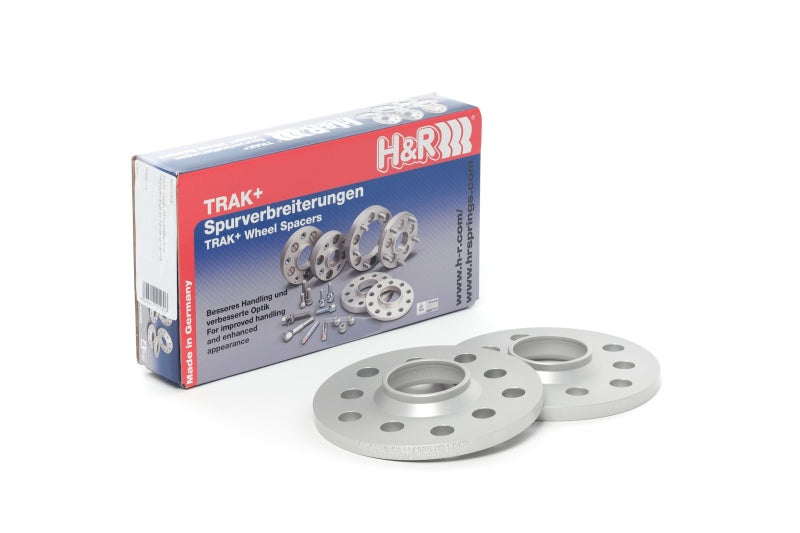

H&R Trak+ 20mm DR Wheel Adaptor Bolt 5/110 Center Bore 65 Bolt Thread 12x1.5

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

This Part Fits:

Year	Make	Model	Submodel
2021	Jeep	Compass	80th Anniversary
2019-2023	Jeep	Compass	Altitude
2019-2020,2022-2023	Jeep	Compass	High Altitude
2017-2025	Jeep	Compass	Latitude
2022-2024	Jeep	Compass	Latitude Lux
2017-2025	Jeep	Compass	Limited
2022-2023	Jeep	Compass	Red
2017-2025	Jeep	Compass	Sport
2017-2025	Jeep	Compass	Trailhawk
2019	Jeep	Compass	Upland
2006-2010	Saab	9-3	2.0T
2004-2011	Saab	9-3	Aero
2008-2009	Saab	9-3	Aero XWD
2003-2005	Saab	9-3	Arc
2003-2005	Saab	9-3	Linear
2003	Saab	9-3	SE
2008	Saab	9-3	Turbo X
2011	Saab	9-3	Turbo4
2003	Saab	9-3	Vector
2000-2001	Saab	9-5	2.3t
2000-2002	Saab	9-5	Aero
2002	Saab	9-5	Arc
1999	Saab	9-5	Base
2000	Saab	9-5	Gary Fisher
2002	Saab	9-5	Linear
1999-2001	Saab	9-5	SE
1982-1992	Saab	900	Base
1982-1998	Saab	900	S
1991,1998	Saab	900	S Turbo
1994-1997	Saab	900	SE
1991,1994-1998	Saab	900	SE Turbo
1986-1991	Saab	900	SPG
1982-1990,1992-1994	Saab	900	Turbo
1993-1994	Saab	900	Turbo Commemorative Edition
2008	Saturn	Astra	XE
2008	Saturn	Astra	XR
